| Type: | Rotary vibrating screen | Application:: | Fine powder screening |
|---|---|---|---|
| Voltage:: | 110V/220V/240V/380V | Screening precision:: | up to 98% |
| Body material:: | Carbon steel/ SS304 / SS316 | Vibrating Motor:: | ABB or custom |
| Color:: | according to different needs | Tumbler Screen Mesh area:: | 0.28-5.3㎡ |
| Motor power:: | 0.75-5.5Kw | Noise Level:: | ≤75dB |

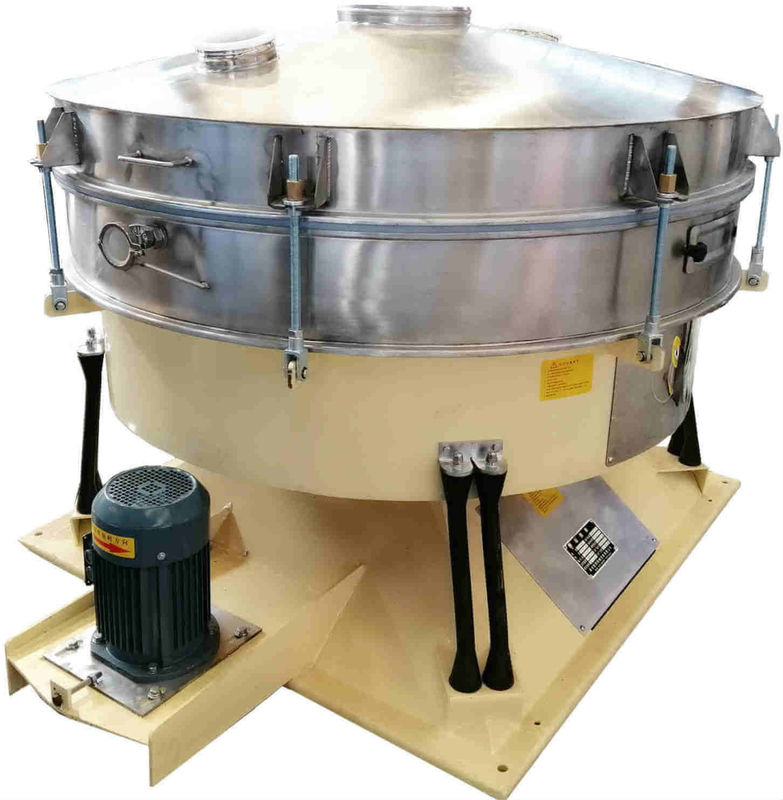

TSM Series Tumbler Screening Machine(TSM) is one type high capacity, high accuracy and high efficiency screening equipment. It is specially designed to meet clients whoever require high production capacity, high-precision screening.
Rotary Tumbler screen Technical Parameters:
| Model | TSM1000 | TSM1200 | TSM1600 | TSM1800 | TSM2000 | TSM2600 |
| Diameter | 1000mm | 1200mm | 1600mm | 1800mm | 2000mm | 2600mm |
| Area | 0.71 m2 | 1.11 m2 | 1.83 m2 | 2.46 m2 | 3.05 m2 | 5.31 m2 |
| Mesh Size | 0.028mm-12mm | |||||
| Layer(s) | 1-3 | 1-5 | ||||
| Power | 1.5KW | 1.5KW | 3.0KW | 4.0KW | 4.0KW | 5.5KW |
| Net Cleaning | Bouncing ball, Ultrasonic device, Rolling brush | |||||
Tumbler screen equipment Application Industries:
Tumbler can be used for sieving find powder or granules with high capacity and high value, such as, salt, plastic granules, starch, sugar, graphite, rubber powder, chemical powder etc.
Контактное лицо: Mr. Jason
Телефон: +86 13103715594
Факс: 86-0371-66627211

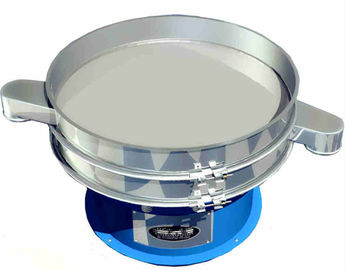

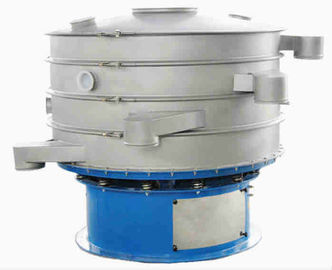

Rotary vibrating screen machine fine powder screening and separating equipment manufacturer
