Tumbler screening machine, pressure leaf filter, vibrating screen separator, press filter, conveyor system and edible crude oil refining machine line and recycling line professional exporter and service provider!
|
Подробная информация о продукте:
Оплата и доставка Условия:
|
| Structure: | carbon steel or stainless steel | Color: | Blue, white or brown |
|---|---|---|---|
| Feature: | Modular design | Belt materials: | PP |
I. Gerneral description:
LBC series wire mesh belt conveyor suitable for the material of moist, seafood, meat material. such as: shrimp, fish, pork, beef, frozen foods, vegetables, fruits and other granules.
II. Main Features:
· 6 belt width of conveyor: 500,650,800,1000,1200,1400mm or customized
· Frame structure: Stationary type, Mobile type
·Texture of belt: rubber belt, plastic belt,steel core belt, PVC belt, PU belt etc.
III.Technical Parameter
| Belt width(mm) | Belt speed(m/s) | Conveying capacity(m³/h) | Motor Power(kw) | |
| Groove type | Flat type | |||
| 500 | 0.8-2.5 | 78-232 | 41-125 | 1.5-30 |
| 650 | 0.8-2.5 | 131-391 | 67-211 | 1.5-40 |
| 800 | 1.0-3.15 | 278-824 | 118-350 | 1.5-75 |
| 1000 | 1.0-3.15 | 435-1233 | 230-546 | 3-100 |
| 1200 | 1.0-4.0 | 655-2202 | 345-821 | 4-185 |
| 1400 | 1.0-4.0 | 891-2996 | 469-1117 | 4-185 |

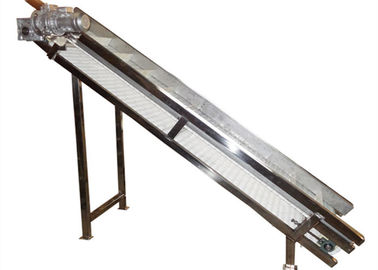

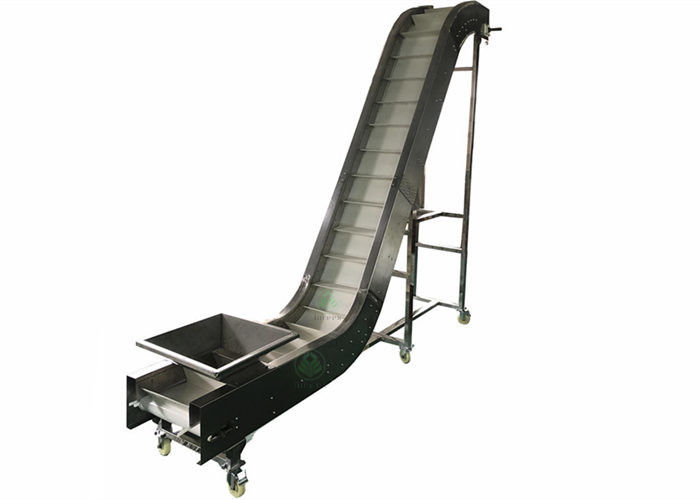

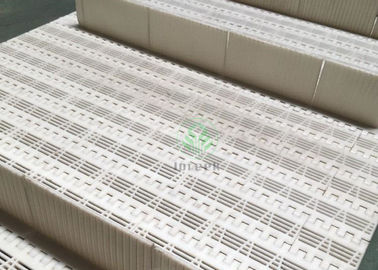

IV.Other photos
